| Attribute | Value |
|---|---|

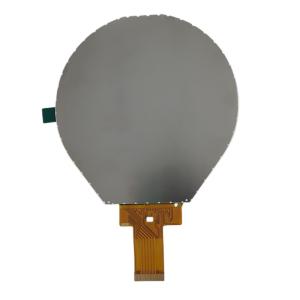

| Display Technology | LCD TFT Display Panel |
| Display Size | 3.4 inch TFT |
| Resolution | 800×800 dots |
| Interface | 30PINS MIPI |
| Driving IC | D9365DA |
| Brightness | 300cd/m² |
| View Angle | All directions |
| Part No. | HX034-30MB-A1 |
| Panel Size | 3.4 inch TFT |
| LCD Type | IPS |
| Module Size | 94.9×96.95×2.22mm |
| Display Area | 87.6×87.6mm |
| Operating Temperature | -20°C to 70°C |
| Storage Temperature | -25°C to 75°C |
