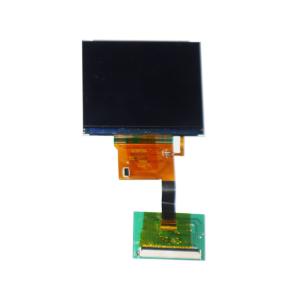

3.17 Inch High Resolution High Brightness TFT Display
1024×768 resolution MIPI interface with 950 cd/m² brightness and wide viewing angle.
Product Specifications
| Attribute | Value |
| Display Technology | FHD TFT |
| Display Size | 3.17 inch TFT LCD |
| Resolution | 1024×768 |
| Interface | MIPI |
| Brightness | 950 cd/m² |
| View Angle | All directions |
Technical Parameters
| Part No. | HX3176001-VO |
| Outline Size | 71.32×57.19 mm |
| Active Area Size | 61×54 mm |
| Working Temperature | -20°C to 70°C |
| Storage Temperature | -30°C to 80°C |
Product Images
TFT Technology Overview
Manufacturer Advantages
- Cost-effective inland factory location
- Advanced equipment for stable quality
- Automated processes for efficiency
- 20+ years of LCD industry experience
- Custom design capabilities
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Company Profile
Huaxin Technology (Enshi) Co., LTD - Founded 2009 in Hubei, China
- Specializes in LCD, LCM, TFT, backlight, and OLED technologies
- 500+ employees with 10% R&D and 15% QC staff
- Registered capital: 20 million
TFT Display Characteristics
- High resolution and color accuracy
- Fast response times
- Wide viewing angles
- Energy efficient operation
- Versatile size options
- LED backlight system
Common Applications
- Car navigation systems and printers
- Video communication and digital signage
- Medical and automotive devices
- Fitness equipment and handheld devices
- Industrial controls and home appliances
Considerations
- Viewing angle limitations in some models
- Contrast ratio constraints
- Backlight power requirements
- Potential motion blur in fast-moving content
- Fixed panel structure
