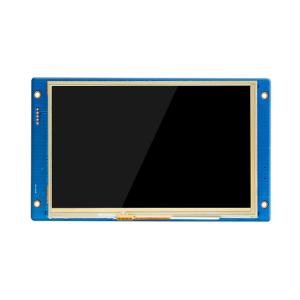

High-quality 7-inch TFT display module featuring 800×480 resolution, 300cd/m² brightness, and UART interface with 10-pin connector.
| Attribute | Value |
|---|---|
| Display Technology | LCD TFT Display Module |
| Size | 7 inch |
| Resolution | 800×480 |
| Brightness | 300cd/m² |
| Interface | 10 pins UART |
| Part No. | HX7003LH80CG48 |
| TFT Size | 7 inch with RTP |
| LCD Type | UART Display |
| Outline Size | 190.5mm (W)×105.4mm (H)×13.0mm |
| Display Area | 155.08mm (W)×86.92mm (H) |
| Serial Mode | UART: ON=TTL/CMOS; OFF=RS232 |
| Touch Panel | RTP |
| Flash Space | 128M bytes |
| LCM Interface | RGB |
| User Interface | 10Pin_1.0mm latching socket |
| View Angle | 70°/70°/50°/70° |
Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi
Founded: 2009
Specialization: Research, development, and production of LCD, LCM, TFT, backlight, and OLED technologies
Product Range:
LCD: VA, TN, HTN, STN, FSTN, CSTN series
LCM: COB, TBA, COG, TP, LED backlight series
Company Stats:
Registered capital: 20 million
Employees: 500+
R&D: 10% of workforce
QC: 15% of workforce
| Product | 2021 | 2022 | 2023 | 2024 | 2025 | Unit |
|---|---|---|---|---|---|---|
| LCD Production | 4.5 | 9 | 9 | 9 | 9 | Thousands/Day |
| LCM Production | 70 | 150 | 300 | 450 | 450 | Thousand/Day |
| Backlight Production | 100 | 200 | 300 | 500 | 500 | Thousand/Day |
| OLED Production | 10 | 20 | 30 | 40 | 50 | Thousand/Day |
