6 Inch High Resolution High Brightnes Resolution TFT Display
.Technical Parameters
| Part NO. | HX600018C0 |
| Display Type | 6 inch tft display module |
| Resolution | 720X1440 |
| Panel Size(mm) | 70.24x142.28*1.63 |
| Active Area (mm) | 68.04x136.08 |
| View direction | all |
| interface | 31 PINS MIPI |
| Brightness | 450c/d |
| Driving IC | ST7703 |
| Working temperature | -20-70 |
| Storage temperature | -30-80 |

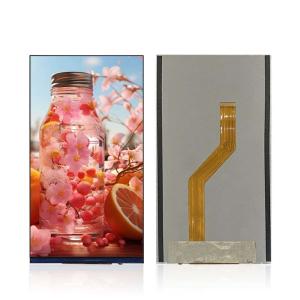

Product Images
TFT Technology Overview
Manufacturer Advantages
- Cost-effective inland factory location
- Advanced equipment for stable quality
- Automated processes for efficiency
- 20+ years of LCD industry experience
- Custom design capabilities
Certifications
- ISO14001
- ISO9001/IATF16949
- SGS certified LCD modules
Company Profile
Huaxin Technology (Enshi) Co., LTD - Founded 2009 in Hubei, China
- Specializes in LCD, LCM, TFT, backlight, and OLED technologies
- 500+ employees with 10% R&D and 15% QC staff
- Registered capital: 20 million
TFT Display Characteristics
- High resolution and color accuracy
- Fast response times
- Wide viewing angles
- Energy efficient operation
- Versatile size options
- LED backlight system
Common Applications
- Car navigation systems and printers
- Video communication and digital signage
- Medical and automotive devices
- Fitness equipment and handheld devices
- Industrial controls and home appliances
Considerations
- Viewing angle limitations in some models
- Contrast ratio constraints
- Backlight power requirements
- Potential motion blur in fast-moving content
- Fixed panel structure
