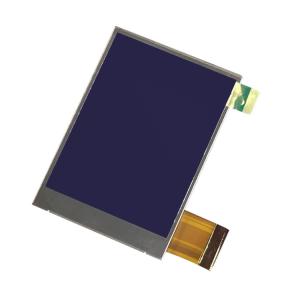

2.4 Inch Transflective TFT Display Tft Lcd Module 240x320 Dots 45pins SPI interface sunlight readable TFT display
Ask Latest Price
Video Channel
Brand Name :HuaXin
Model Number :HX240RGN15A
Certification :ISO14001/ ISO9001/IATF16949
Place of Origin :China
MOQ :1~1000
Price :$12.1~$11.5
Payment Terms :T/T
Supply Ability :500K pcs per month
Delivery Time :4~6weeks
Packaging Details :blister+foam box+bubble bag+inside carton+master carton
Display Technology :transflective display
name :tft lcd screen
size :2.4 inch
resolution :240x320
Brightness :100c/d
Interface :45 pins SPI
Remarks :sunlight readable
more
Contact Now

Add to Cart
Find Similar Videos
View Product Description
2.4 Inch Transflective TFT Display Tft Lcd Module 240x320 Dots 45pins SPI interface sunlight readable TFT display
Key Specifications
ITEM specification
Model Number HX240RGN15A
size 2.4 inch TFT
LCD Type IPS
display mode transflective
Number of pixels 240x320
Active area 36.72x49.96mm
OutlineSize(W*H*T) 42.72x60.16x2.55mm
Viewing direction free view
LCM Driver IC /
LCM interface SPI,MCU interface

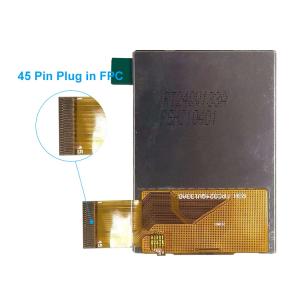

PIN number 45 pins
LED number 2pcs
operating temperature -20~70
storage temperature -30 to +80
Luminance Sunlight readable
Product Images

2.4 Inch Transflective TFT Display Tft Lcd Module 240x320 Dots 45pins SPI interface sunlight readable TFT display

2.4 Inch Transflective TFT Display Tft Lcd Module 240x320 Dots 45pins SPI interface sunlight readable TFT display

2.4 Inch Transflective TFT Display Tft Lcd Module 240x320 Dots 45pins SPI interface sunlight readable TFT display

2.4 Inch Transflective TFT Display Tft Lcd Module 240x320 Dots 45pins SPI interface sunlight readable TFT display

Technical drawing

2.4 Inch Transflective TFT Display Tft Lcd Module 240x320 Dots 45pins SPI interface sunlight readable TFT display

2.4 Inch Transflective TFT Display Tft Lcd Module 240x320 Dots 45pins SPI interface sunlight readable TFT display


TFT Product Knowledge
2.4 Inch Transflective TFT Display Tft Lcd Module 240x320 Dots 45pins SPI interface sunlight readable TFT display
2.4 Inch Transflective TFT Display Tft Lcd Module 240x320 Dots 45pins SPI interface sunlight readable TFT display
Manufacturer Advantages
  • Cost-effective inland factory location
  • Advanced equipment for stable quality
  • Automated processes for efficiency and consistency
  • 20+ years of LCD industry expertise
  • Custom design capabilities
Company Certifications
  • ISO14001
  • ISO9001/IATF16949
  • SGS certified LCD modules
Company Overview

Huaxin Technology (Enshi) Co., LTD
Hubei, Enshi | Founded 2009

High-tech enterprise specializing in LCD, LCM, TFT, backlight, and OLED research, development, and production.

Product Range: VA, TN, HTN, STN, FSTN, CSTN LCDs and COB, TBA, COG, TP, LED backlight LCMs

Company Size: 500+ employees (10% R&D, 15% QC)

Registered Capital: 20 million

Product Applications
  • Car navigation systems & printers
  • Video communication & advertising displays
  • Automotive & medical devices
  • Fitness equipment & handheld devices
  • Industrial control systems & home appliances
TFT Display Characteristics
  • Image Quality: High resolution, sharpness, and color accuracy
  • Response Time: Fast pixel switching capability
  • Viewing Angles: Wide angles with minimal color shift
  • Energy Efficiency: Lower power consumption than alternatives
  • Size Flexibility: Available in various sizes for different applications
  • Backlighting: Typically uses LED illumination
TFT Display Considerations
  • Viewing angles may be limited compared to some technologies
  • Contrast ratio limitations
  • Backlighting increases power consumption
  • Potential for motion blur in fast-moving images
  • Limited flexibility in physical form
  • Color gamut may be narrower than some alternatives
